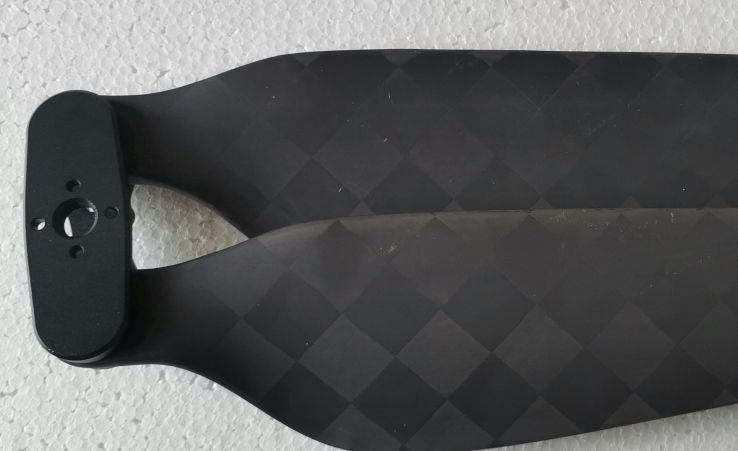

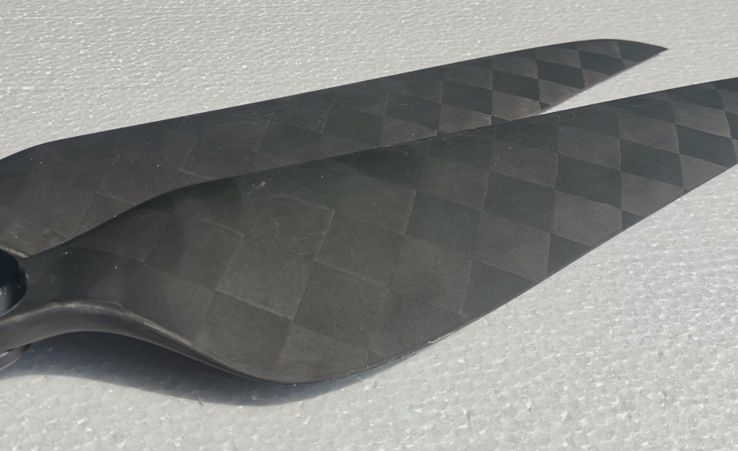

睿翼 30x9.8 碳纤维分体桨

睿翼 30x9.8 碳纤维分体桨

超轻!

通过优化结构设计与材料应用,有效降低转动惯量,减轻整机负载,提升响应速度与整体飞行效率

高强!

采用12K碳纤维材料,结合严谨的铺层结构设计,在实现轻量化的同时兼顾高强度与优异的疲劳耐久性,满足高强度工况需求

高效!

表面采用哑光处理,降低反光与飞行噪音,同时减少空气阻力;配合优化空气动力翼型设计,使螺旋桨整体效率提升约7%

定制化解决方案

支持螺旋桨定制服务,可根据不同飞行场景与性能需求,对重量、强度及气动参数进行个性化优化

  • 高强度碳纤维

    高效气动设计

Product Description

Basic Knowledge of Propellers

技术规格

单支重量: 约71g

安全转速: ≤3300r/min

安全拉力: ≤8 kg

💡 我们接受定制尺寸和设计(OEM和ODM可用)

Material and Construction

Modern multi rotor drone propellers are typically made of lightweight and tough materials, such as carbon fiber, engineering plastics (such as ABS, polycarbonate), or nylon, to ensure they are both lightweight and durable during high-speed rotation. The structure of a propeller is divided into two parts: a hub (center part) and a blade, where the shape and inclination design of the blade directly affect the lift efficiency and stability of the propeller.

Operational Principle

Selection and Calibration of Propellers

Choosing the appropriate propeller is crucial for improving the performance of unmanned aerial vehicles. Large diameter, low pitch (i.e. the degree of blade bending) propellers are suitable for applications that require high lift and low speed, such as heavy loads or low-noise flight; On the contrary, small diameter and high pitch propellers are suitable for high-speed flight. In addition, proper balance and pitch adjustment can reduce vibration, improve flight efficiency and battery endurance.

The Impact on Flight Performance

The performance of propellers directly affects the flight speed, stability, endurance, and noise level of unmanned aerial vehicles. Optimized propeller configuration can make unmanned aerial vehicles more energy-efficient, achieving longer flight time or faster response speed. Meanwhile, a reasonable selection of propellers can also enhance the adaptability of drones in complex environments, such as maintaining stable hovering and flight under high wind conditions.


In short, although the propellers of multi rotor drones are small, they carry the heavy responsibility of drones soaring in the sky. From material selection to fine tuning, every step embodies the perfect combination of technological innovation and flying art, allowing these aerial spirits to play an irreplaceable role in multiple fields such as agricultural monitoring, film and television shooting, and logistics distribution.

Technical Parameter

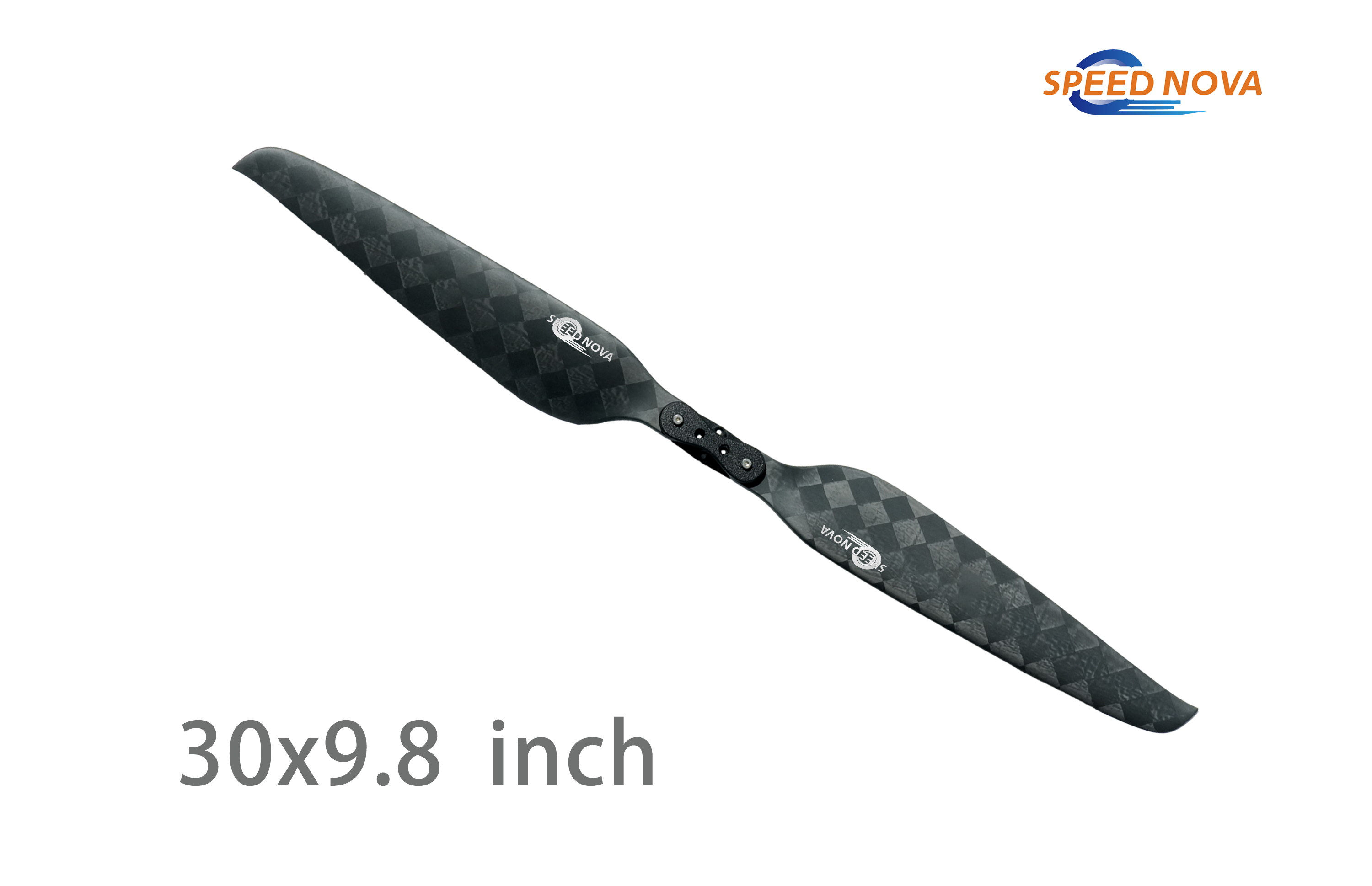

30*9.8 Carbon Fiber Folding Propeller

Voltage(V)Current(A)Tensile Force(g)Torque(N.M)Rotatian Speed(rpm)Shaft Power(W)Axial Force(G/W)Accelerator(%)
44.4 1.9 1000 0.3 1150 36.12  27.68 45
44.4 2.9 1500 0.4 1360 56.96  26.34 50
44.4 3.8 2080 0.6 1603 100.70  20.66 55
44.4 5.0 2500 0.8 1765 147.84  16.91 60
44.4 6.5 3000 0.9 1947 183.47  16.35 65
44.4 7.1 3510 1.1 2000 230.34  15.24 70
44.4 9.3 4000 1.3 2230 303.53  13.18 75
44.4 10.4 4500 1.4 2265 332.00  13.55 80
44.4 12.5 5000 1.7 2420 430.74  11.61 85
44.4 15.7 5500 1.9 2576 512.44  10.73 90
44.4 17.7 6020 2.2 2690 619.61  9.72 95
44.4 18.9 6530 2.3 2730 657.41  9.93 100


想要选择适合您的螺旋桨吗?

进行快速测试以找到适合您的螺旋桨。

Features

Our carbon propellers use modified materials, with extremely low water absorption, 38% carbon fiber content, higher strength than other peer products, and high propeller efficiency. High quality and low price, it is recognized in the industry as the most cost-effective product series.



1. With fine workmanship and exquisite appearance.

2. The blades have passed precise dynamic balance inspection, and the flight noise is low.

3. High aerodynamic efficiency, low power consumption, improve battery life.

4. Light and strong pulling force, and excellent balance.

5. Adopts push-type quick release design, which is easy to assemble and disassemble.

6. Adapted to various types of drones, widely used in firefighting, surveying, monitoring, logistics, express delivery, military and police equipment, and university research projects

7. It is a perfect replacement for the damaged parts.

Dimensions

We have12X4inch, 14X8inch, 15X5inch, 16X6inch, 16X8inch, 16X5.5inch, 17X6inch, 17.5X6.5inch, 18X6.5inch, 19X6.2inch20X6.5inch, 22X7.8inch, 22X9inch, 24X7.8inch, 24X15inch, 26X8.2inch, 28X12inch, 28X12inch, 29X9.6inch, 30X9.8inch, 30X14inch, 32X12inch, 32.5X15.6inch, 34X12inch, 36X18inch, 40X13inch, 42X14inch, 47.5X18inch, 50X19inch, 52X19inch, 57X19inch, 60X19inch, 64X20inch, 72X31inch carbon fiber propellers for various drone or UAV

Accept customized size and design

Notice: Accepted OEM &ODM

Packaging & Shipping

如果您有任何疑问,请联系我们

如果您有任何疑问,请联系我们

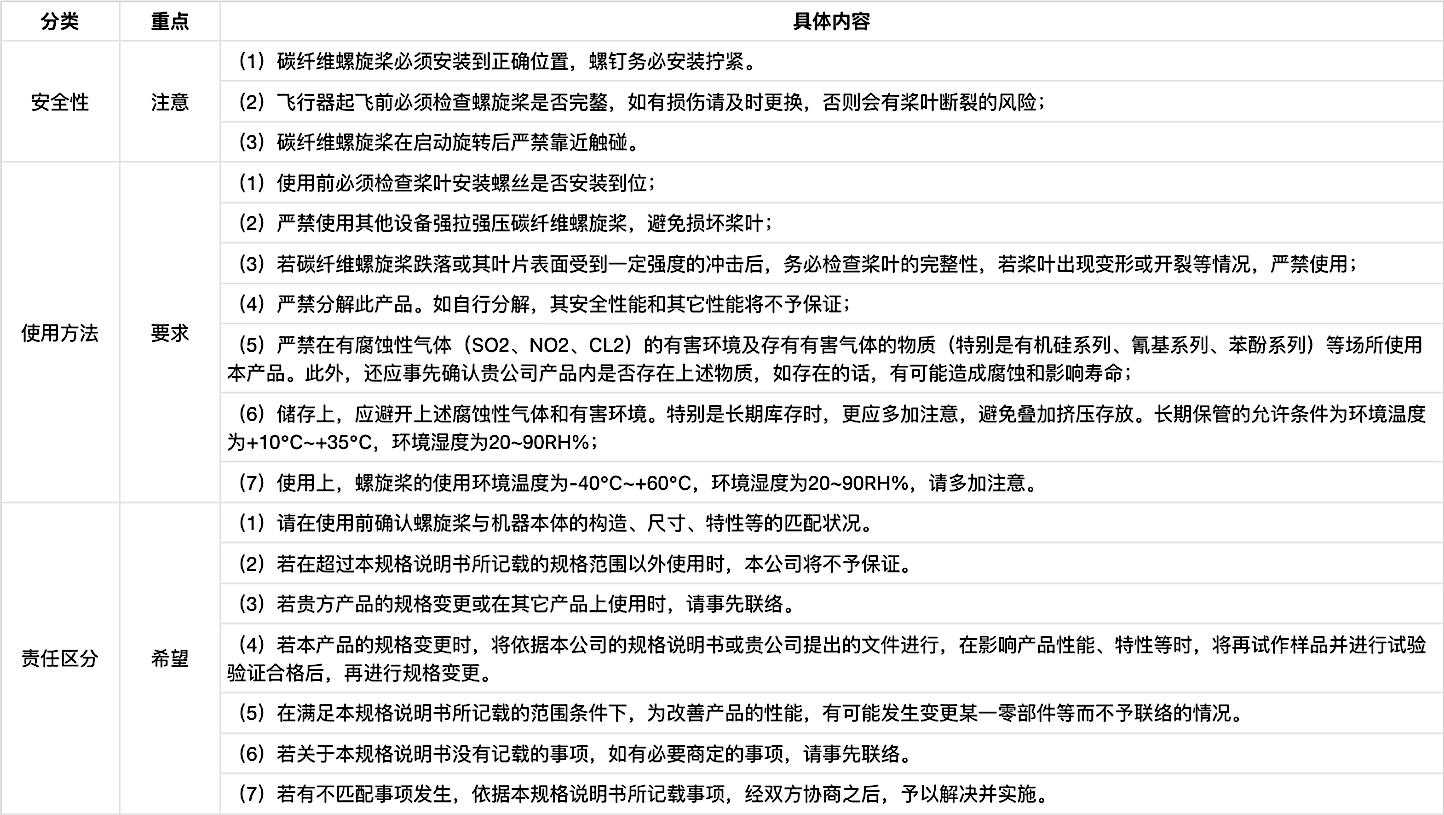

Warn

1.使用螺旋桨时请小心,旋转的螺旋桨可能会造成严重伤害。

2.螺旋桨的结构强度经过全面测试。请确保螺旋桨的使用不超过限制。请不要试图用手弯曲螺旋桨来测试其强度。因使用不当造成的任何损坏或损失将由用户承担。

3.请确保所有配件安装正确。

4.请在飞行前检查螺旋桨,确保其状况良好。如果发现螺旋桨有故障,请更换新的。

5.储存时,请远离恶劣环境,包括但不限于H2O、SO2、NO2、Cl2、有机硅、氰基和苯酚。建议环境温度在0至40℃之间,湿度低于80%。

6.将螺旋桨安装到电机上时,请涂上中等或以上强度的厌氧螺纹锁固胶。

7.请按照当地法律法规使用螺旋桨。

8.请勿将其用于军事目的,否则由此造成的任何风险和责任将由客户承担。
